Benjolin – Gorga, Semi Modular Synthesizer (standalone version)

Posted by squaresolid
0

Benjolin – Gorga standalone version is made by order. Fill in the form to get one.

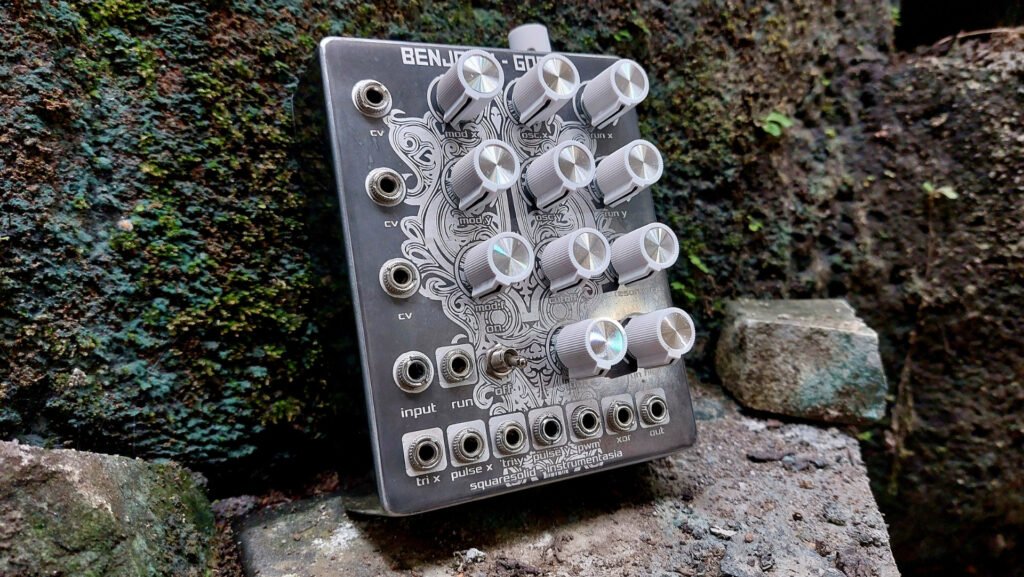

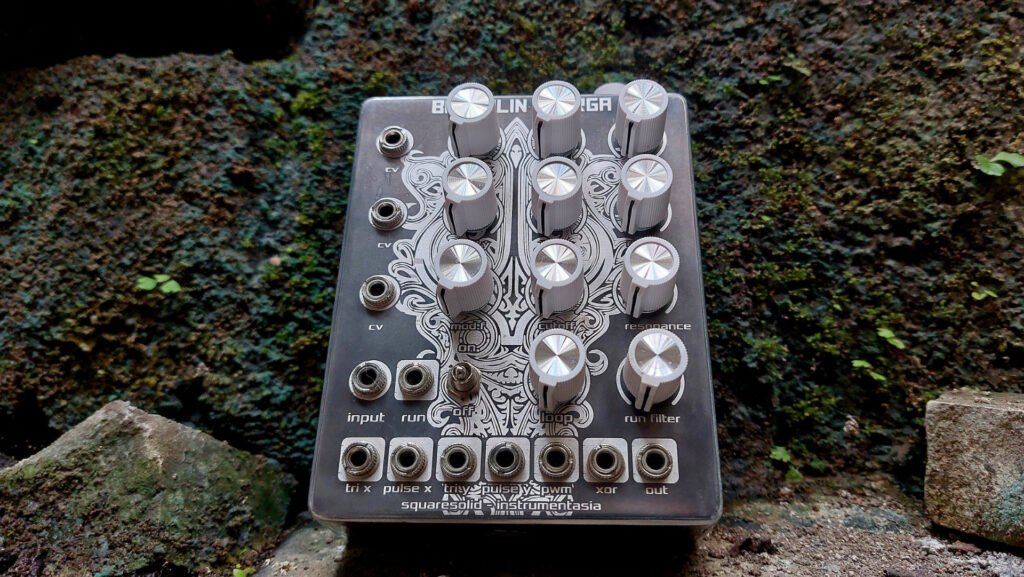

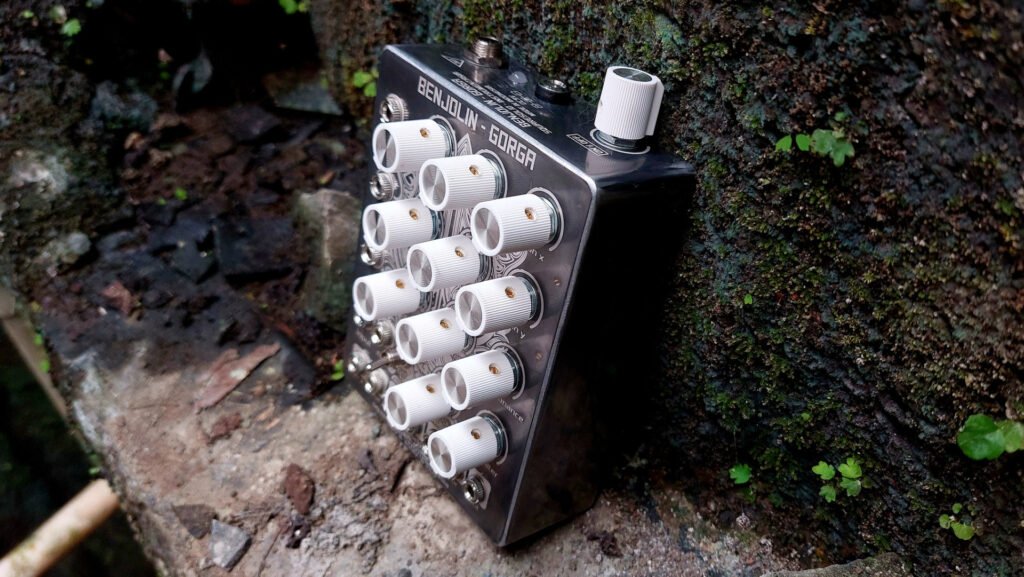

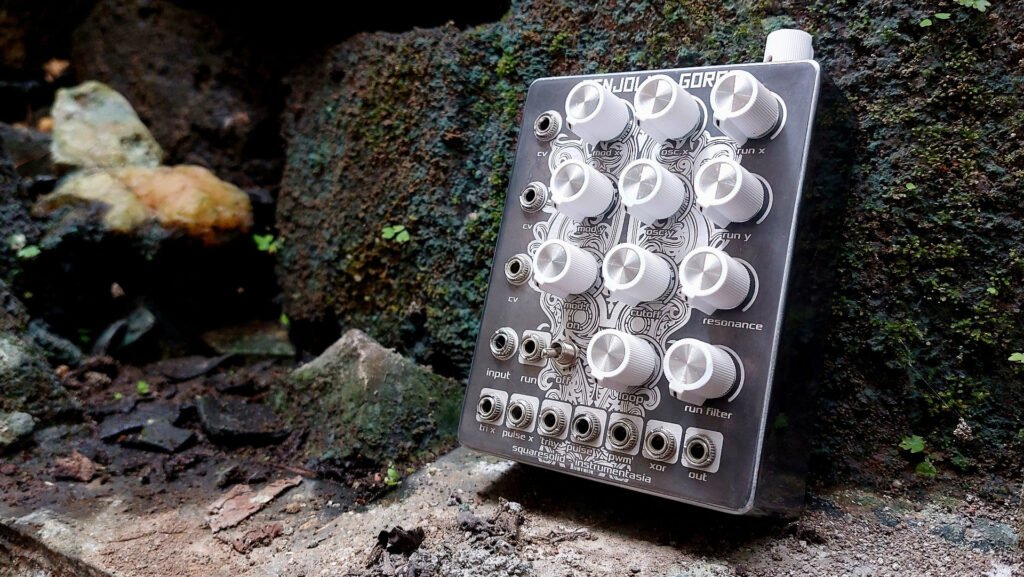

This is Benjolin – Gorga standalone version. It is a semi-modular eurorack system in a box, capable to work using a regular 12V power adaptor. The circuit can easily be removed to be mounted in a standard eurorack case with just adding a 3U 16HP plate. Plug n play. I designed this standalone version as a contribution for synth enthusiasts who have invested a lot in pedals and other desktop instruments.

The circuit addition to convert regular single power supply unit to for the Benjolin will be available as open source. You can find it in here.

Benjolin is an instrument which runs based on chaos theory principles created by Rob Hordijk (NL). It is “bent by design” with many unstable and stable states that can seamlessly and unexpectedly blend into one another.

GORGA is an art form in the culture of Batak Toba of North Sumatra, Indonesia which inspire the forms of flourishes, undulations and life itself. The panel drawing is known as Gorga Singa-Singa, often placed on the front corners of Batak’s traditional houses for protection. Gorga Singa-Singa is a symbol of wisdom and strength.

I have some PCB’s left and I am accepting pre-order for any of you who would like to have one build. Information for pre-order available on my bio or you can DM me if you are interested. Source for this project is available in my Github.

  • Features
    • 2x VCO
    • 1x VCF
    • Rungler
    • Internal Cross Modulation
    • External Input
    • Volume Control
    • Switch On/Off
    • LED Indicator
  • Dimension
    • 14 x 9 x 5.4 cm
    • 375 gram
      • Casing
    • Polished Aluminium
    • White Laser Engraving
      • Power
    • 10 Pin IDC Connector
    • Runs on 12V center negative power supply
    • Power Consumption: +12V 35mA -12V 35mA
    • Polarity Protection

https://www.instagram.com/p/C85KnuKS8W6/?utm_source=ig_web_copy_link&igsh=MzRlODBiNWFlZA==
