GΣMΔ- Senyawa’s pedal / synth

Pre-order Form: https://forms.gle/y4nDS11BjX6xCjQV6

GEMA adalah Delay Effect Pedal dan/atau Synthesizer dengan fitur Noise/Glitch. GEMA diproduksi melalui kolaborasi antara Squaresolid dan Senyawa untuk menciptakan suara delay khas untuk Wukir Suryadi. Seluruh karakteristik suara pedal dirancang agar sesuai dengan gaya bermain dan instrumen buatan Wukir Suryadi.

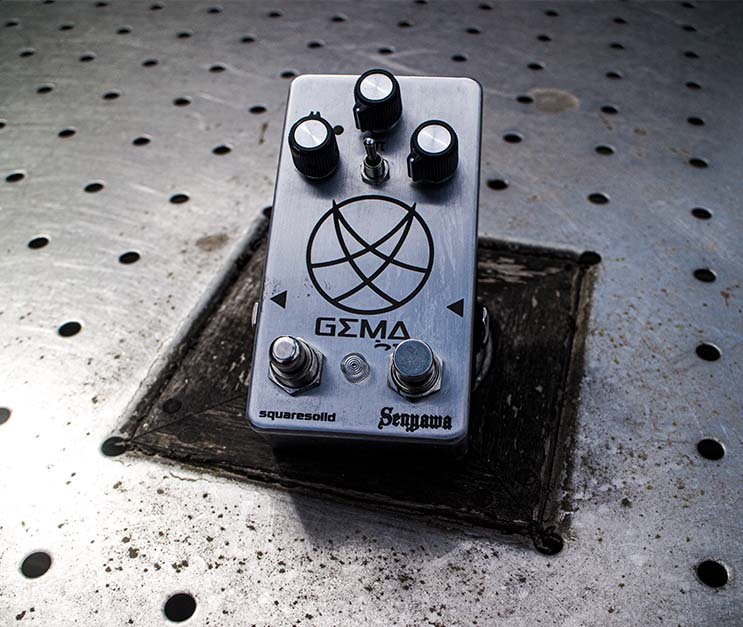

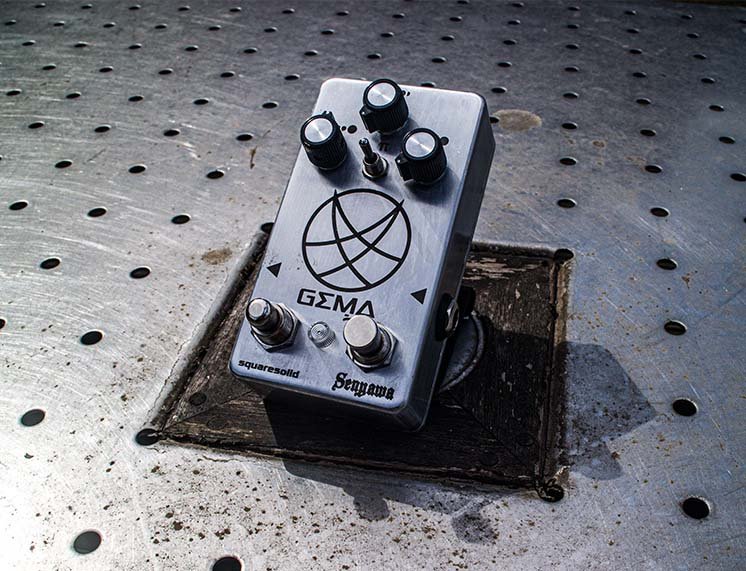

Introducing GEMA, a Delay Effect Pedal and/or Synthesizer with Noise/Glitch function. GEMA is produced under collaboration between Squaresolid and Senyawa for creating a signature delay sound of Wukir Suryadi. All the pedal sound characteristic is designed to suits Wukir’s playing style, his DIY instrument and sound characteristic.

GEMA berfungsi seperti Efek Delay normal dengan durasi delay hingga 600 ms dengan karakter tone kelam. Bila saklar π dalam posisi bawah, GEMA seolah menjadi GEMPA dan menghasilkan bunyi gemuruh yang menggeram dihasilkan oleh fungsi noise/glitch dari rancangan rangkaian elektronika di dalamnya. Jika saklar dalam π posisi atas, GEMA akan menghasilkan pengulangan nada yang kacau dari input suara yang dikombinasikan dengan suara white noise yang mendesis tinggi. Dalam posisi tengah, GEMA akan berfungsi normal layaknya efek delay lainnya. GEMA menampilkan kesederhanaannya dengan 3 knob, sebuah saklar mode, saklar injak aktivasi delay hidup/mati dengan fungsi tail, dan saklar injak tahan untuk osilasi sesaat.
GEMA works as a normal Delay Pedal with up to 600ms of delay time with dark characteristic. Once the switch π is toggle down, GEMA will turn to GEMPA, a noise / glitch synthesizer that produced a growling earthquake – like rumble. If the switch π is toggle up, GEMA will produce a chaotic pitch repetition of the sound input combined with high hissing white noise sound. In Indonesian language, GEMA means Echo, while GEMPA means earthquake. GEMA features it’s simplicity with 3 dials, a mode switch, an on/off delay switch with tail function, and a self oscillation momentary switch.

Technical details:

• High input impedance
• Low output impedance
• Aluminium enclosure material
• Raw design, no paint finish
• Laser engraving with markings
• Noise/Glitch mode
• Size 115mm x 65mm x 55mm
• Up to ~600ms delay time
• 9V center negative adapter, circuits uses 9V and 5V regulated power
• Polarity protection
• LED in UV, signal indicator

The dials:
– OooO: is the Delay dial. It control the amount of Delay time of the pedal. The minimum delay time is 55ms and maximum delay time is 600ms.
– ODD : is the Feedback dial. It control the amount of Delay repetition of the pedal. If the dial is in maximum setting, a self oscillation will occur which is useful in GEMPA mode.
– oOO : is the Mix dial. It control the volume of Delay sound mixed with the input sound. In the minimum setting all GEMA sound is complete off except the input sound.
– ON/OFF Switch: Changing the switch Off from playing will still produce tail to pass through. This is not a true bypass pedal as Wukir’s tend to change with/without delay. Internally the circuit buffered the input and output to have high input impedance and low output impedance.
– ON: LED indicator lite on, the input sound will be GEMA. It’s not exactly a unity gain, as Wukir’s DIY instrument need a little bit of boost before it can be processed.
– OFF: LED indicator is off. INPUT = BUFFERED OUTPUT.

Setiap pembelian akan mendapatkan:
What you’ll be getting in every purchase:
– 1 unit GEMA pedal synth
– 1 pcs manual book
– 1 pcs 110 – 240V 9V adaptor (center negative)
– stickers
– packaging

Durasi Pengerjaan: 1-2 Minggu produksi. Mohon kesabarannya dalam proses pengerjaan hasil dari kerajinan tangan Andreas Siagian (squaresolid – instrumentasia).

Production duration will be in range of 1-2 weeks production. Please be patient during the production as it’s manually build, handcraft of Andreas Siagian (squaresolid – instrumentasia)

Untuk Indonesia, harga GEMA dijual dengan harga Rp. 1.500.000,- + Ongkos kirim.
Biaya ongkir di Jawa – Bali adalah Rp. 35.000,-
Untuk daerah Sumatera – Kalimantan – Sulawesi adalah Rp. 70.000,-.
Biaya lainnya seperti biaya transfer bank dll, ditanggung pembeli. Pembayaran dapat dilakukan 100% di depan, kemudian pesanan dapat diproses hingga produksi. Pembayaran dapat dilakukan melalui transfer bank BCA ke 0952500986 an Andreas Siagian. Silahkan ikuti prosedur di formulir pemesanan ini: https://forms.gle/y4nDS11BjX6xCjQV6

Internationally, GEMA pedal synth price is for sale at USD $150 + Shipping cost
Shipping cost for Asia and Europe is USD $20
Shipping cost for US is USD $30
Shipping is using https://www.kurasi.co.id/services who is working under DHL service.
Paypal or other payment fee is paid by buyer. Please use the paypal calculator for figuring out how much to transfer. It’s recommended to send a 1-2$ more to avoid any cancellation in process. Payment can be done 100% in front, then the order can be process to production. This is due to the needs on buying the materials for production. I’m fully aware that transferring money to stranger is dangerous, but I can assure you that I will respect your trust and won’t abuse it.

Paypal calculator example:
Open: https://www.salecalc.com/paypal
change country to Indonesia
Input price + shipping cost
click “to receive this..”
Transfer the amount calculated to andreslov4@gmail.com via paypal
Please fill in the pre-order form: https://forms.gle/y4nDS11BjX6xCjQV6

**
Mohon pengertiannya bahwa pedal di gambar dan video adalah prototype dan produk ini merupakan kerajinan tangan sehingga akan ada perbedaan kecil antara produk yang dihasilkan.

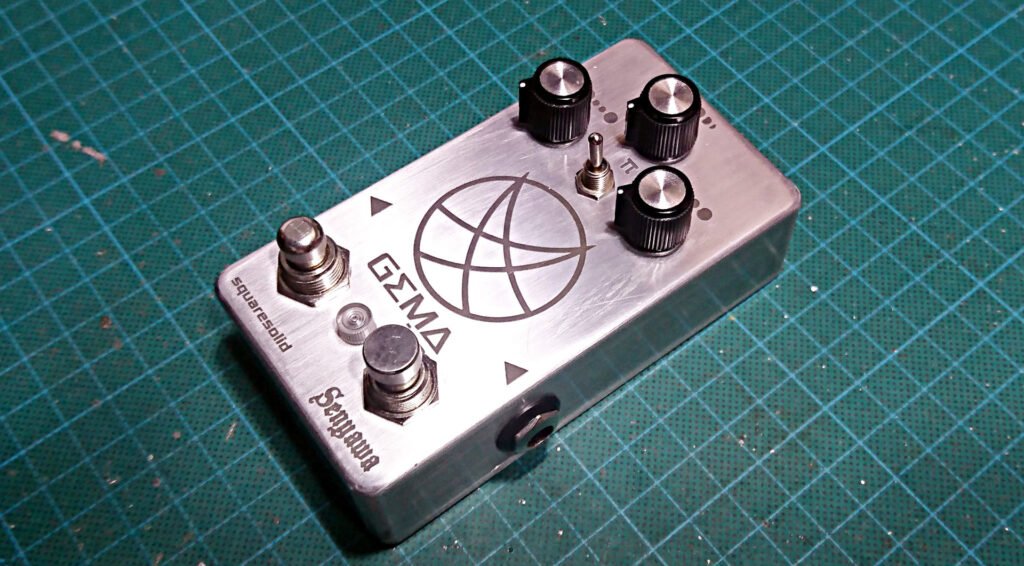

Please note that the picture and video is taken on a prototype and the product is handcrafted so there might be a slight difference (in improvement) between products.
